Stainless Steel ERW Pipe Manufacturer

Table Of Content

Prism TuboTech Pvt. Ltd is a well-known Stainless Steel ERW pipe manufacturer, supplier, and stockiest. To increase the strength of the pipe, our ERW pipes are electric resistant welded longitudinally from strips or coils.

Stainless Steel Electrical Resistance Welding Pipes, Stainless Steel ERW Pipes Manufacturer, Stainless Steel ERW Pipes Exporter, Stainless Steel ERW Piping, SS ERW Pipe, SS ERW Pipe Supplier, Austenitic Stainless Steel ERW Pipes, Stainless Steel ERW Pipes Supplier, ASTM A312 Stainless Steel ERW Pipes Supplier in India.

Electric Resistance Welded (ERW)Pipes are a type of pipe that can be used for fences, scaffolding, pipelines, and other applications.

Jindal Stainless Steel ERW Pipes, Stainless Steel ERW Pipes, Stainless Steel ERW Pipes Manufacturer, SS ERW Round Pipe, Stainless Steel Welded Wrought ERW Pipes, Stainless Steel ERW Pipes Stockist, Stainless Steel ERW Pipes Stockholder, Stainless Steel ERW Pipes Price, ASME SA312 Stainless Steel ERW Piping, Stainless Steel ERW Pipes Exporter in Mumbai, India.

The strength, corrosion resistance, reformability, and toughness of these pipes are all excellent. Quality testing of these ERW pipes is done thoroughly before dispatching them for delivery. Our catalog includes stainless-steel electric resistance welding pipes in grades 304, 316, and many more. These pipes are available in a wide variety of sizes and qualities.

ERW Schedule 40 Pipe is a medium-range schedule that allows pipes to bear medium-range pressures. ERW Stainless Steel Pipe is available in a wide range of diameters, from small to large, with an outer diameter up to 24 inches. Water, oil, and other low-pressure liquids are regularly transported using our Stainless Steel ERW Pipes. The strength of the pipes along their whole length is a plus. For increased strength, stainless steel ERW Square Pipe is employed in several applications. The pipes are welded from sheets, plates, or strips by joining their ends with an electric resistance welder.

Stainless Steel ERW

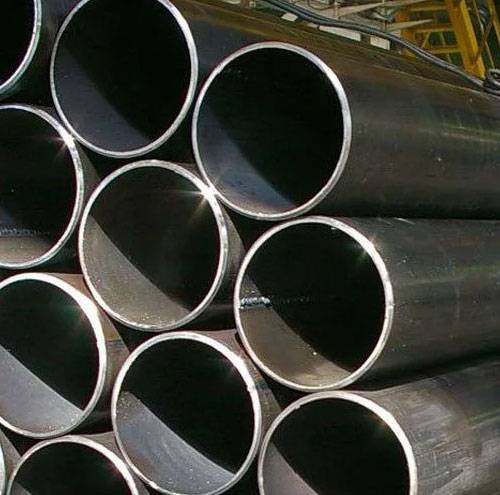

Stainless Steel ERW Pipes

Stainless Steel 304 ERW Pipe is utilized because of its strength and capacity to withstand temperatures up to 870 degrees Celsius.

However, it is ineffective against aqueous environments including seawater. On the other hand, 316 Stainless Steel ERW Pipe is resistant to chloride ions and performs well in seawater. Our Stainless Steel ERW Pipes are sourced from reputable manufacturers and are known for their exceptional functioning, unmatched quality, and sturdy construction. Prism TuboTech Pvt. Ltd provides you with the highest quality Stainless Steel ERW pipes at the most affordable costs.

Stainless Steel Electrical Resistance Welding Pipes Specification

Specifications

ASTM A312 / ASME SA312

Dimensional

ANSI/ASME B36.19M, ANSI/ASME B36.10M

Pipe Size

2 3/8 inch OD to 24 inch OD

Outside Diameter

6.35 - 114.3 mm

Thickness Range

0.8 - 12.7 mm

Length

up to 100 Meters & Above

Types Of Stainless Steel ERW Pipes

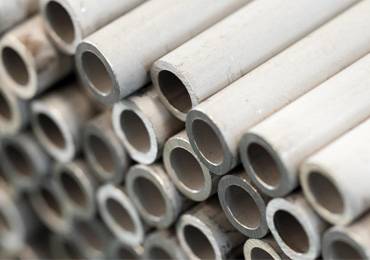

SS ERW Round Pipe

ERW Round Pipe

  • ASME SA312 Stainless Steel ERW Round Pipe
  • Stainless Steel ERW Round Pipes in India
  • ASTM A312 Stainless Steel ERW Round Pipes
  • Stainless Steel ERW Round Pipe
  • SS ERW Round Pipes Supplier
  • Stainless Steel ERW Round Pipes
  • SS Round Electrical Resistance Welding Pipes Exporter
  • Stainless Steel ERW Round Pipes
  • SS ERW Round Pipes Manufacturer
  • SS ERW Round Pipe
  • SS ERW Round Pipe Price
  • Stainless Steel Round ERW Pipes Stockist
  • SS ERW Round Pipes in Mumbai, India

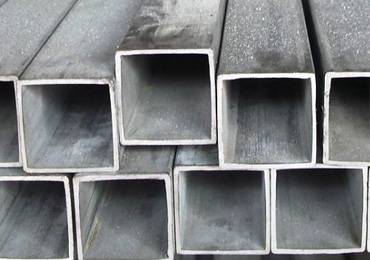

SS ERW Square Pipes

ERW Square Pipes

  • SS ERW Square Pipes Stockist
  • Stainless Steel ERW Square Pipe
  • Stainless Steel ERW Square Pipes in India
  • ASME SA312 Stainless Steel ERW Square Pipes
  • Stainless Steel Square ERW Pipes
  • SS ERW Square Pipes
  • SS ERW Square Pipes Manufacturer
  • SS Electrical Resistance Welding Square Pipe Price
  • ASTM A312 Stainless Steel ERW Square Pipes
  • SS ERW Square Pipes Exporter
  • Stainless Steel ERW Square Pipe Supplier
  • SS Square ERW Pipes in Mumbai, India

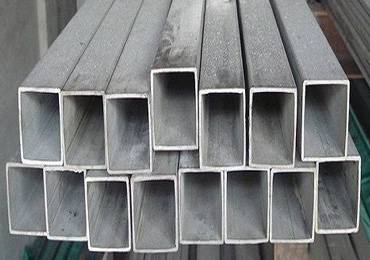

SS ERW Rectangular Pipe

ERW Rectangular Pipe

  • Stainless Steel Rectangular ERW Pipe
  • SS ERW Rectangular Pipes Supplier
  • Stainless Steel ERW Rectangular Pipes
  • ASME SA312 Stainless Steel ERW Rectangular Pipes
  • Stainless Steel ERW Rectangular Pipes Manufacturer
  • Stainless Steel Electrical Resistance Welding Rectangular Pipe
  • SS ERW Rectangular Pipes Exporter
  • SS Rectangular ERW Pipes Stockist
  • SS ERW Rectangular Pipes in Mumbai, India
  • ASTM A312 Stainless Steel ERW Rectangular Pipe
  • Stainless Steel ERW Rectangular Pipes

Stainless Steel ERW Pipe Pressure Rating Chart

Pressure Rating (psig)
Size
(inches) 		Schedule Temperature (oF)
100 200 300 400 500 600 650 700 750
1" 40 3048 2629 2362 2171 2019 1924 1867 1824 1810
80 4213 3634 3265 3002 2791 2659 2580 2528 2501
160 6140 5296 4759 4375 4068 3876 3761 3684 3646
1 1/2" 40 2257 1947 1750 1608 1496 1425 1383 1354 1340
80 3182 2744 2466 2267 2108 2009 1949 1909 1889
160 4619 3984 3580 3291 3060 2916 2829 2772 2743
2" 40 1902 1640 1474 1355 1260 1201 1165 1141 1129
80 2747 2369 2129 1957 1820 1734 1682 1648 1631
160 4499 3880 3486 3205 2980 2840 2755 2699 2671
3" 40 1806 1558 1400 1287 1196 1140 1106 1084 1072
80 2553 2202 1979 1819 1691 1612 1564 1532 1516
160 3840 3312 2976 2736 2544 2424 2352 2304 2280
4" 40 1531 1321 1187 1091 1014 967 938 919 909
80 2213 1909 1715 1577 1466 1397 1355 1328 1314
160 3601 3106 2791 2566 2386 2273 2206 2161 2138
5" 40 1342 1158 1040 956 889 847 822 805 797
80 1981 1709 1535 1411 1312 1250 1213 1189 1176
160 3414 2945 2646 2433 2262 2155 2091 2049 2027
6" 40 1219 1052 945 869 808 770 747 732 724
80 1913 1650 1483 1363 1267 1208 1172 1148 1136
160 3289 2836 2549 2343 2179 2076 2014 1973 1953
8" 40 1073 926 832 765 711 678 657 644 637
80 1692 1459 1311 1205 1121 1068 1036 1015 1005
160 3175 2738 2460 2262 2103 2004 1944 1905 1885
10" 40 974 840 755 694 645 615 596 584 578
80 1609 1388 1247 1147 1066 1016 986 966 956
160 3147 2714 2439 2242 2085 1986 1927 1880 1868

SS ERW Pipe Schedule Size

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

SS ERW Pipe Pipe Sizes

SS Pipe OD
mm 		Pipe WT
mm 		in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352 1 160 4.30
42.16 2.77 1¼ 10S 2.73
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 6.352 1¼ 160 5.69
48.26 2.77 1½ 10S 3.16
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742 2 160 11.29
73.03 3.05 2½ 10S 5.35
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132 3 160 21.67
101.60 3.05 3½ 10S 7.53
101.60 5.74 3½ 40S 13.78
101.60 8.08 3½ 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012 8 160 112.97

Stainless Steel ERW Pipe Size In Inch

Wall Thickness Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"

Other Types Of Stainless Steel ERW Pipes

  • SS Cold Drawn ERW Pipe Exporter in India
  • Coated SS ERW Pipe Stockists in India
  • ASME SA312 SS Fabricated ERW Pipes
  • Stainless Steel ERW Pipe Pressure Rating Chart
  • Stainless Steel ERW Pipe Pressure Rating
  • Stainless Steel ERW Pipe Price 20 Feet
  • Stainless Steel ERW Pipe Weight Chart
  • SS 1.4301 Electrical Resistance Welding Piping
  • Stainless Steel ERW Pipe Specification Chart
  • Stainless Steel Rectangular ERW Pipes Supplier
  • Unpolished Stainless Steel Factory ERW Pipe
  • SS Electrical Resistance Welding Pipe Size Chart in mm
  • Jindal Stainless Steel ERW Pipe Price List
  • SS ERW Pipe Price Per Meter
  • Stainless Steel ERW Pipe Price Per Foot
  • Stainless Steel ERW Pipe Manufacturing Process
  • SS Jindal Electrical Resistance Welding Pipes
  • Stainless Steel Square ERW Pipe Manufacturer
  • SS Electric Resistance Welding Pipes Application
  • Weight of Stainless Steel ERW Pipe
  • Stainless Steel Welded ERW Pipe
  • Stainless Steel ERW Pipe Grade
  • Stainless Steel Electrical Resistance Welding Pipe Pressure Rating
