Prism TuboTech Pvt. Ltd. is India's Most Distinguished and pre-eminent stainless steel company which is dealing with manufacturing of value added high end stainless steel products in India.

Contact Us

Contact Info

Stainless Steel 304 ERW Pipe Manufacturer

Table Of Content

Prism TuboTech Pvt. Ltd. is a top Stainless Steel ERW Pipe manufacturer in India, producing and selling pipes in a variety of grades, kinds, and sizes. Stainless Steel 304 ERW Pipes are among our most popular products.

304 Stainless Steel ERW Pipe, UNS S30403 ERW Pipes, Stainless Steel 304L ERW Pipes, UNS S30409 ERW Pipe, Stainless Steel S30400 ERW Pipes Exporter, Austenitic Stainless Steel 304 ERW Pipes, Stainless Steel 304 ERW Piping, Stainless Steel 1.4301 ERW Pipes, SS 304H ERW Pipes, Stainless Steel 304H ERW Pipes, ASTM A312 Stainless Steel 304 ERW Pipes Supplier in India.

Low- or high-frequency resistance "resistance" is used to create Stainless Steel 304L ERW steel pipes. They're spherical pipes with transverse welds welded from metal sheets. These SS 304L ERW Pipes are used to transport oil, natural gas, and other vapor-liquid items, and they can handle a wide range of pressure needs. It currently holds a crucial place in the world's transit pipe industry.

Stainless Steel 1.4948 ERW Pipes Manufacturer, Stainless Steel TP304L ERW Pipes, Stainless Steel TP304H ERW Pipes Stockholder, 304 Stainless Steel ERW Pipes Price, ASME SA312 Stainless Steel 304L ERW Piping, Stainless Steel 1.4307 ERW Pipes, Jindal Stainless Steel 304L ERW Pipes, Stainless Steel 304H ERW Pipes Exporter in Mumbai, India.

When current runs through the contact surface of the welding area during ERW pipe welding, heat is created. It warms the steel's two edges to the point where one can establish a bond with the other. The edges of the tube blank melt and push together at the same time because of the combined pressure. Because the material is very cost efficient, the 304-grade Stainless Steel ERW Pipe has been the most extensively used across stainless steel pipes. There are even more grades with high corrosion resistance, strength, and welding capabilities, but Stainless Steel 304H ERW Pipe is utilized because of its strength and capacity to withstand heat up to 870 °C. However, it is ineffective against aquatic media including seawater.

Grade
304

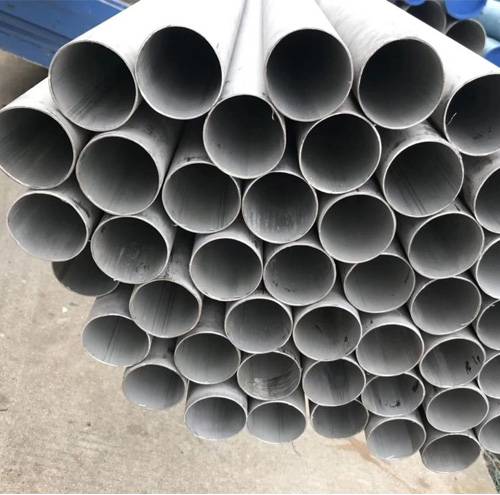

Stainless Steel 304 / 304L / 304H ERW Pipes

Stainless Steel 304 ERW Pipes by Prism TuboTech Pvt. Ltd. are made in accordance with global standards and are quality-tested. These Stainless Steel 304L ERW Pipes are commonly used in the transit of liquids such as water, oil, and other low-pressure fluids. The advantage of these Stainless Steel ERW Pipes is their robustness along their entire length. In some applications, stainless steel ERW Square Pipe is used for added strength.

SS 304L ERW Pipes, Stainless Steel 304L ERW Pipes Supplier, Stainless Steel 304H ERW Pipes Manufacturer, Stainless Steel 304 ERW Pipes, 304 Stainless Steel Electrical Resistance Welding Pipes, Stainless Steel 1.4306 ERW Pipes Stockist, SS 304 ERW Round Pipe, 304L Stainless Steel Welded Wrought ERW Pipes, SS 304 ERW Pipes, SS 304 ERW Pipe Supplier, SS 304 ERW Pipe Manufacturer, SS 304 ERW Pipe,

Stainless Steel 304 Electrical Resistance Welding Pipes Specification

Specifications

ASTM A312 / ASME SA312

Dimensional

ANSI/ASME B36.19M, ANSI/ASME B36.10M

Pipe Size

2 3/8 inch OD to 24 inch OD

Outside Diameter

6.35 - 114.3 mm

Thickness Range

0.8 - 12.7 mm

Length

up to 100 Meters & Above

ASME SA 312 Equivalent Grades of Stainless Steel 304L ERW Pipes

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 304H 1.4948 S30409 SUS 304H – – – –

Types Of Stainless Steel 304H ERW Pipes

SS ERW Round Pipe

ERW Round Pipe

  • ASTM A312 Stainless Steel 304 ERW Round Pipes
  • ASME SA312 Stainless Steel 304L ERW Round Pipe
  • Stainless Steel 304 ERW Round Pipes
  • Stainless Steel 304L ERW Round Pipes
  • Stainless Steel 304H ERW Round Pipe
  • SS 1.4301 ERW Round Pipes Manufacturer
  • SS 1.4306 ERW Round Pipe
  • SS 1.4948 Round Electrical Resistance Welding Pipes Exporter
  • 304 SS ERW Round Pipe Price
  • 304L Stainless Steel ERW Round Pipes in India
  • UNS S30400 Round ERW Pipes Stockist
  • UNS S30403 ERW Round Pipes Supplier
  • UNS S30409 ERW Round Pipes in Mumbai, India
SS ERW Square Pipes

ERW Square Pipes

  • ASTM A312 Stainless Steel 304H ERW Square Pipes
  • ASME SA312 Stainless Steel 304 ERW Square Pipes
  • Stainless Steel 304 ERW Square Pipes
  • Stainless Steel 304L ERW Square Pipe
  • Stainless Steel 304H Square ERW Pipes
  • UNS S30400 ERW Square Pipes Stockist
  • UNS S30403 ERW Square Pipe Supplier
  • UNS S30409 Square ERW Pipes in Mumbai, India
  • 304 SS Electrical Resistance Welding Square Pipe Price
  • 304L Stainless Steel ERW Square Pipes in India
  • SS 1.4301 ERW Square Pipes Manufacturer
  • SS 1.4307 ERW Square Pipes
  • SS 1.4948 ERW Square Pipes Exporter
SS ERW Rectangular Pipe

ERW Rectangular Pipe

  • ASTM A312 Stainless Steel 304 ERW Rectangular Pipe
  • ASME SA312 Stainless Steel 304H ERW Rectangular Pipes
  • SS 1.4301 ERW Rectangular Pipes Manufacturer
  • SS 1.4306 Rectangular ERW Pipe
  • Stainless Steel 304 ERW Rectangular Pipes
  • SS 1.4948 ERW Rectangular Pipes Exporter
  • Stainless Steel 304L Electrical Resistance Welding Rectangular Pipe
  • Stainless Steel 304H ERW Rectangular Pipes
  • UNS S30400 Rectangular ERW Pipes Stockist
  • UNS S30403 ERW Rectangular Pipes Supplier
  • UNS S30409 ERW Rectangular Pipes in Mumbai, India

304 Stainless Steel ERW Pipe Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 – 8 – 11 –
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18 – 20 – 8 – 13 –
SS 304H 0.10 max 2.0 max 0.75 max 0.045 max 0.03 max 18 – 20 – 8 – 10.5 –

304 Stainless Steel ERW Pipes Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Stainless Steel 304H ERW Pipe Pressure Rating Chart

Pressure Rating (psig)
Size
(inches) 		Schedule Temperature (oF)
100 200 300 400 500 600 650 700 750
1" 40 3048 2629 2362 2171 2019 1924 1867 1824 1810
80 4213 3634 3265 3002 2791 2659 2580 2528 2501
160 6140 5296 4759 4375 4068 3876 3761 3684 3646
1 1/2" 40 2257 1947 1750 1608 1496 1425 1383 1354 1340
80 3182 2744 2466 2267 2108 2009 1949 1909 1889
160 4619 3984 3580 3291 3060 2916 2829 2772 2743
2" 40 1902 1640 1474 1355 1260 1201 1165 1141 1129
80 2747 2369 2129 1957 1820 1734 1682 1648 1631
160 4499 3880 3486 3205 2980 2840 2755 2699 2671
3" 40 1806 1558 1400 1287 1196 1140 1106 1084 1072
80 2553 2202 1979 1819 1691 1612 1564 1532 1516
160 3840 3312 2976 2736 2544 2424 2352 2304 2280
4" 40 1531 1321 1187 1091 1014 967 938 919 909
80 2213 1909 1715 1577 1466 1397 1355 1328 1314
160 3601 3106 2791 2566 2386 2273 2206 2161 2138
5" 40 1342 1158 1040 956 889 847 822 805 797
80 1981 1709 1535 1411 1312 1250 1213 1189 1176
160 3414 2945 2646 2433 2262 2155 2091 2049 2027
6" 40 1219 1052 945 869 808 770 747 732 724
80 1913 1650 1483 1363 1267 1208 1172 1148 1136
160 3289 2836 2549 2343 2179 2076 2014 1973 1953
8" 40 1073 926 832 765 711 678 657 644 637
80 1692 1459 1311 1205 1121 1068 1036 1015 1005
160 3175 2738 2460 2262 2103 2004 1944 1905 1885
10" 40 974 840 755 694 645 615 596 584 578
80 1609 1388 1247 1147 1066 1016 986 966 956
160 3147 2714 2439 2242 2085 1986 1927 1880 1868

SS 304 ERW Pipe Schedule Size

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

SS 304H ERW Pipe Pipe Sizes

SS Pipe OD
mm 		Pipe WT
mm 		in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352 1 160 4.30
42.16 2.77 1¼ 10S 2.73
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 6.352 1¼ 160 5.69
48.26 2.77 1½ 10S 3.16
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742 2 160 11.29
73.03 3.05 2½ 10S 5.35
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132 3 160 21.67
101.60 3.05 3½ 10S 7.53
101.60 5.74 3½ 40S 13.78
101.60 8.08 3½ 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012 8 160 112.97

304 Stainless Steel ERW Pipe Size In Inch

Wall Thickness Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"

Other Types Of Stainless Steel 304H ERW Pipes

  • SS 304 Cold Drawn ERW Pipe Exporter in India
  • Coated SS 304 ERW Pipe Stockists in India
  • ASME SA312 SS 304 Fabricated ERW Pipes
  • 304 Stainless Steel ERW Pipe Pressure Rating Chart
  • 304 Stainless Steel ERW Pipe Pressure Rating
  • Stainless Steel ERW Pipe Price 20 Feet
  • 304 Stainless Steel ERW Pipe Weight Chart
  • SS 1.4301 Electrical Resistance Welding Piping
  • 304 Stainless Steel ERW Pipe Specification Chart
  • Stainless Steel 304 Rectangular ERW Pipes Supplier
  • 304 Unpolished Stainless Steel Factory ERW Pipe
  • SS 304 Electrical Resistance Welding Pipe Size Chart in mm
  • Jindal Stainless Steel 304 ERW Pipe Price List
  • SS 304 ERW Pipe Price Per Meter
  • 304L Stainless Steel ERW Pipe Price Per Foot
  • 304 Stainless Steel ERW Pipe Manufacturing Process
  • SS 304 Jindal Electrical Resistance Welding Pipes
  • Stainless Steel 304L Square ERW Pipe Manufacturer
  • SS 304L Electric Resistance Welding Pipes Application
  • Weight of 304 Stainless Steel ERW Pipe
  • 304 Stainless Steel Welded ERW Pipe
  • Stainless Steel 304H ERW Pipe Grade
  • 304 Stainless Steel Electrical Resistance Welding Pipe Pressure Rating

Application Industries for High Quality SS 304 ERW Pipes

Application Industries
  • SS 304 ERW Pipes Food Processing Industry
  • SS 304H ERW Pipes Construction Industries
  • SS 304 ERW Pipes Hydraulic Applications
  • SS 304L ERW Pipes Petrochemical Industry
  • SS 304 ERW Pipes in Oil & Gas Industrires
  • SS 304L ERW Pipes Piping Systems
  • SS 304H ERW Pipes Refining Industry
  • SS 304 ERW Pipes Power Plant Industry
  • SS 304L ERW Pipes Pulp & Paper Indusry
  • SS 304H ERW Pipes Shipbuilding Industries
  • SS 304L ERW Pipes Chemical Industries
  • SS 304H ERW Pipes Energy Industry
  • SS 304 ERW Pipes In Offshore Pipelines & Pipe Works
