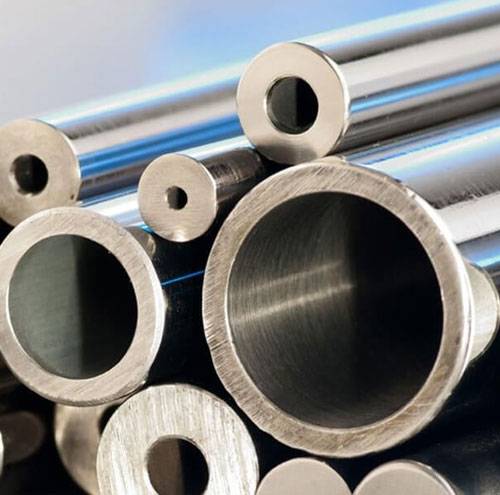

Stainless Steel Seamless Pipe is a cylindrical tube made from stainless steel with no welded joints. It is manufactured by extruding a solid stainless steel billet through a die to form a seamless hollow tube.
Prism TuboTech Pvt. Ltd. is India's Most Distinguished and pre-eminent stainless steel company which is dealing with manufacturing of value added high end stainless steel products in India.
Contact UsContact Info
Stainless Steel Seamless Pipe is a cylindrical tube made from stainless steel with no welded joints. It is manufactured by extruding a solid stainless steel billet through a die to form a seamless hollow tube.
This construction method ensures high structural integrity and corrosion resistance, making it ideal for applications where fluid or gas transport requires a leak-free and durable solution.
Stainless steel seamless pipes are commonly used in industries like petrochemicals, pharmaceuticals, food processing, and construction due to their strength and resistance to rust and corrosion. Stainless Steel 317 Seamless Pipe offers excellent corrosion resistance in highly acidic and corrosive environments. It finds applications in chemical processing, pulp and paper industries, and textiles due to its resistance to sulfuric acid and other harsh chemicals, making it a robust choice for demanding conditions.
Stainless steel is a very durable and versatile material. It has unique properties that make it excel. Stainless steel seamless pipes are made of chromium with elevated corrosion resistance levels. Its durability is impressive. Seamless SS Pipes are used in various fields, including water treatment, oil and gas, chemical production, and food processing. Stainless Steel Seamless Pipe transports the petrochemical industry's oil, gasses, or steam. In the medical industry, seamless pipes are used in sterile environments suitable for manufacturing surgical tools and medical supplies.
These applications show a glimpse of the various uses of stainless steel seamless pipes. Stainless Steel 304 Seamless Pipe is a type of SS Seamless Pipe made from Grade 304 stainless steel alloy, known for its excellent corrosion resistance and versatility. It is widely used in various industries, including food processing, chemical, and automotive, for its strength, durability, and resistance to rust and staining. Stainless steel seamless pipes are preferred for various reasons.
What is a SS seamless pipes?
Stainless Steel Seamless Pipe is a tubular product made from stainless steel
without any welding seams or joints. It offers excellent corrosion
resistance and is known for its strength and durability.
One of the critical benefits is that they don't require welding, which means they don't have seam weaknesses or defects. These pipes are ideal for carrying very corrosive substances, such as acids and bases. Stainless Steel 316 Seamless Pipe is crafted from Grade 316 stainless steel, renowned for its superior corrosion resistance, particularly in aggressive environments with chloride exposure. We are a trusted stainless steel seamless pipe supplier, offering a wide range of high-quality, corrosion-resistant piping solutions for various industrial and construction applications. Our commitment to excellence ensures you receive reliable and durable seamless pipes tailored to your specific needs.
SS Seamless Pipe is favored in marine, pharmaceutical, and chemical industries for its exceptional durability and resistance to pitting and crevice corrosion. They are also relatively lightweight, which makes them easier to install and maintain. They are also recyclable and have an attractive appearance that adds value to the structure in which they are installed. As a leading Stainless Steel Seamless Pipe Manufacturer, we utilize state-of-the-art technology and stringent quality control measures to produce pipes that meet the highest industry standards. Our seamless pipes combine durability and precision, making us a preferred choice for customers seeking top-tier piping solutions.
Are stainless steel seamless pipes suitable for high-temperature
applications?
Yes, Stainless Steel Seamless Pipes are well-suited for high-temperature
applications due to their excellent heat resistance properties.
What are the standard available stainless steel seamless pipe
sizes?
stainless steel seamless pipe sizes typically range from 1/8 inch to 36
inches in diameter, with various wall thickness options to suit diverse
industrial applications. Specific sizes can vary depending on the
manufacturer and region.
ASTM A312 / ASME SA312
ANSI/ASME B36.19M, ANSI/ASME B36.10M
1 / 2" NB - 16" NB
6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)
Nominal Pipe Size (NPS) | ASTM A312 Pipe |
IPS 1/4 to 1-1/2 | +.015/-.031 |
IPS 2 to 4 | +.031/-.031 |
IPS 5 to 8 | +.093/-.031 |
NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
1/8″
|
|
|
|
|
|
1/4″
|
|
|
|
|
|
3/8″
|
|
|
|
|
|
1/2″
|
|
|
|
|
|
3/4″
|
|
|
|
|
|
1″
|
|
|
|
|
|
1 1/4″
|
|
|
|
|
|
1 1/2″
|
|
|
|
|
|
2″
|
|
|
|
|
|
2 1/2″
|
|
|
|
|
|
3″
|
|
|
|
|
|
4″
|
|
|
|
|
|
5″
|
|
|
|
|
|
6″
|
|
|
|
|
Pressure Rating (psig) | ||||||||||
Pipe Size (inches) |
Pipe Schedule | Temperature (oF) | ||||||||
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||
1" | 40 | 3168 | 2629 | 2362 | 2171 | 2019 | 1924 | 1867 | 1824 | 1810 |
80 | 4213 | 3634 | 3265 | 3002 | 2791 | 2659 | 2580 | 2528 | 2501 | |
160 | 6140 | 5296 | 4759 | 4375 | 4068 | 3876 | 3761 | 3684 | 3646 | |
1 1/2" | 40 | 2257 | 1947 | 1750 | 1608 | 1496 | 1425 | 1383 | 1354 | 1340 |
80 | 3182 | 2744 | 2466 | 2267 | 2108 | 2009 | 1949 | 1909 | 1889 | |
160 | 4619 | 3984 | 3580 | 3291 | 3060 | 2916 | 2829 | 2772 | 2743 | |
2" | 40 | 1902 | 1640 | 1474 | 1355 | 1260 | 1201 | 1165 | 1141 | 1129 |
80 | 2747 | 2369 | 2129 | 1957 | 1820 | 1734 | 1682 | 1648 | 1631 | |
160 | 4499 | 3880 | 3486 | 3205 | 2980 | 2840 | 2755 | 2699 | 2671 | |
3" | 40 | 1806 | 1558 | 1400 | 1287 | 1196 | 1140 | 1106 | 1084 | 1072 |
80 | 2553 | 2202 | 1979 | 1819 | 1691 | 1612 | 1564 | 1532 | 1516 | |
160 | 3840 | 3312 | 2976 | 2736 | 2544 | 2424 | 2352 | 2316 | 2280 | |
4" | 40 | 1531 | 1321 | 1187 | 1091 | 1014 | 967 | 938 | 919 | 909 |
80 | 2213 | 1909 | 1715 | 1577 | 1466 | 1397 | 1355 | 1328 | 1314 | |
160 | 3601 | 3106 | 2791 | 2566 | 2386 | 2273 | 2206 | 2161 | 2138 | |
5" | 40 | 1342 | 1158 | 1040 | 956 | 889 | 847 | 822 | 805 | 797 |
80 | 1981 | 1709 | 1535 | 1411 | 1312 | 1250 | 1213 | 1189 | 1176 | |
160 | 3414 | 2945 | 2646 | 2433 | 2262 | 2155 | 2091 | 2049 | 2027 | |
6" | 40 | 1219 | 1052 | 945 | 869 | 808 | 770 | 747 | 732 | 724 |
80 | 1913 | 1650 | 1483 | 1363 | 1267 | 1208 | 1172 | 1148 | 1136 | |
160 | 3289 | 2836 | 2549 | 2343 | 2179 | 2076 | 2014 | 1973 | 1953 | |
8" | 40 | 1073 | 926 | 832 | 765 | 711 | 678 | 657 | 644 | 637 |
80 | 1692 | 1459 | 1311 | 1205 | 1121 | 1068 | 1036 | 1015 | 1005 | |
160 | 3175 | 2738 | 2460 | 2262 | 2103 | 2004 | 1944 | 1905 | 1885 | |
10" | 40 | 974 | 840 | 755 | 694 | 645 | 615 | 596 | 584 | 578 |
80 | 1609 | 1388 | 1247 | 1147 | 1066 | 1016 | 986 | 966 | 956 | |
160 | 3147 | 2714 | 2439 | 2242 | 2085 | 1986 | 1927 | 1880 | 1868 |
SIZE RANGE | SCHEDULE CHART | MANUFACTURING TYPES |
---|---|---|
O. D. .5”-8” Available Length: 17’ - 24’ |
SCH 5 | Seamless, Welded |
O. D. : 0.5" thru 20" Available Length: 17' - 24' |
SCH 10 | Seamless, Welded |
O. D. : 0.25" thru 20" Available Length: 17' - 24' |
SCH 40 | Seamless, Welded |
O. D. : 0.5" thru 20" Available Length: 17' - 24' |
SCH 80 | Seamless, Welded |
Price of Stainless Steel Seamless Pipe ASTM A312 TP : $ 4200 ~ $ 5700
/Ton
Price of SS Seamless Pipe ASTM A312 TP : $ 4300 ~ $ 5800 /Ton
Price of Stainless Steel ERW / Welded Pipe ASTM A312 TP : $ 3700 ~ $ 5200
/Ton
Price of SS ERW/Welded Pipe ASTM A312 TP : $ 3800 ~ $ 5300 /Ton
Price of SS EFW Pipe ASTM A358 TP : $ 3200 ~ $ 4700 /Ton
Price of Stainless Steel EFW Pipe ASTM A358 TP : $ 3300 ~ $ 4800 /Ton
Nominal Bore | Outside Diameter | Sch-5S | Sch-10S | Sch-40S | Sch-80S | Sch-160S | Sch-XXS | |||||||
mm | INCH | mm | Wt | Weight | Wt | Weight | Wt | Weight | Wt | Weight | Wt | Weight | Wt | Weight |
mm | (Kg/mt) | mm | (Kg/mt) | mm | (Kg/mt) | mm | (Kg/mt) | mm | (Kg/mt) | mm | (Kg/mt) | |||
3 | 1/8 | 10.3 | 1.24 | 0.276 | 1.24 | 0.28 | 1.73 | 0.37 | 2.41 | 0.47 | - | - | - | - |
6 | 1/4 | 13.7 | 1.24 | 0.390 | 1.65 | 0.49 | 2.24 | 0.631 | 3.02 | 0.80 | - | - | - | - |
10 | 3/8 | 17.1 | 1.24 | 0.490 | 1.65 | 0.63 | 2.31 | 0.845 | 3.20 | 1.10 | - | - | - | - |
15 | 1/2 | 21.3 | 1.65 | 0.800 | 2.11 | 1.00 | 2.77 | 1.27 | 3.75 | 1.62 | 4.75 | 1.94 | 7.47 | 2.55 |
20 | 3/4 | 26.7 | 1.65 | 1.03 | 2.11 | 1.28 | 2.87 | 1.68 | 3.91 | 2.20 | 5.54 | 2.89 | 7.82 | 3.63 |
25 | 1 | 33.4 | 1.65 | 1.30 | 2.77 | 2.09 | 3.38 | 2.50 | 4.55 | 3.24 | 6.35 | 4.24 | 9.09 | 5.45 |
32 | 1 1/4 | 42.2 | 1.65 | 1.65 | 2.77 | 2.70 | 3.56 | 3.38 | 4.85 | 4.47 | 6.35 | 5.61 | 9.70 | 7.77 |
40 | 1 1/2 | 48.3 | 1.65 | 1.91 | 2.77 | 3.11 | 3.68 | 4.05 | 5.08 | 5.41 | 7.14 | 7.25 | 10.16 | 9.54 |
50 | 2 | 60.3 | 1.65 | 2.40 | 2.77 | 3.93 | 3.91 | 5.44 | 5.54 | 7.48 | 8.74 | 11.1 | 11.07 | 13.44 |
65 | 2 1/2 | 73.0 | 2.11 | 3.69 | 3.05 | 5.26 | 5.16 | 8.63 | 7.01 | 11.4 | 9.53 | 14.9 | 14.2 | 20.39 |
80 | 3 | 88.9 | 2.11 | 4.51 | 3.05 | 6.45 | 5.49 | 11.30 | 7.62 | 15.2 | 11.1 | 21.3 | 15.24 | 27.65 |
100 | 4 | 114.3 | 2.11 | 5.84 | 3.05 | 8.36 | 6.02 | 16.07 | 8.56 | 22.3 | 13.49 | 33.54 | 17.12 | 41.03 |
125 | 5 | 141.3 | 2.77 | 9.47 | 3.40 | 11.57 | 6.55 | 21.8 | 9.53 | 31.97 | 15.88 | 49.11 | 19.05 | 57.43 |
150 | 6 | 168.3 | 2.77 | 11.32 | 3.40 | 13.84 | 7.11 | 28.3 | 10.97 | 42.7 | 18.2 | 67.56 | 21.95 | 79.22 |
200 | 8 | 219.1 | 2.77 | 14.79 | 3.76 | 19.96 | 8.18 | 42.6 | 12.7 | 64.6 | 23.0 | 111.2 | 22.23 | 107.8 |
250 | 10 | 273.1 | 3.40 | 22.63 | 4.19 | 27.78 | 9.27 | 60.5 | 12.7 | 96.0 | 28.6 | 172.4 | 25.40 | 155.15 |
300 | 12 | 323.9 | 3.96 | 31.25 | 4.57 | 36.00 | 9.52 | 73.88 | 12.7 | 132.0 | 33.32 | 238.76 | 25.40 | 186.97 |
350 | 14 | 355.6 | 3.96 | 34.36 | 4.78 | 41.3 | 11.13 | 94.59 | 19.05 | 158.08 | 35.71 | 281.70 | - | - |
400 | 16 | 406.4 | 4.19 | 41.56 | 4.78 | 47.29 | 12.7 | 123.30 | 21.41 | 203.33 | 40.46 | 365.11 | - | - |
450 | 18 | 457.2 | 4.19 | 46.80 | 4.78 | 53.42 | 14.27 | 155.80 | 23.8 | 254.36 | 45.71 | 466.40 | - | - |
500 | 20 | 508.0 | 4.78 | 59.25 | 5.54 | 68.71 | 15.09 | 183.42 | 26.19 | 311.2 | 49.99 | 564.68 | - | - |
600 | 24 | 609.6 | 5.54 | 82.47 | 6.35 | 94.45 | 17.48 | 255.41 | 30.96 | 442.08 | 59.54 | 808.22 | - | - |
