Prism TuboTech Pvt. Ltd. manufactures, exports, and stocks a huge quantity of Stainless Steel Welded Pipes. Welded stainless steel pipes are more durable than standard pipes. They require less maintenance and are more resistant to corrosion and rust. Stainless Steel Welded Pipes are manufactured in bulk at Prism TuboTech Pvt. Ltd. because they resist rust due to the formation of a chromium oxide coating.
- Email Us At:
[email protected]
- Call Us Any Time:
+91 78770 13119
- Location
105-C, 65, 5th Kumbharwada Lane, Mumbai
Prism TuboTech Pvt. Ltd. is India's Most Distinguished and pre-eminent stainless steel company which is dealing with manufacturing of value added high end stainless steel products in India.
Contact UsContact Info
- Prism TuboTech
Pvt. Ltd. 105-C, Mezzanine Floor, 65, Kushal Bhavan
5th Kumbharwada Lane, Mumbai – 400004, Maharashtra, India - +91-22-66518529
- +91-96878 75150
- [email protected]
SS Welded Round Pipe, Stainless Steel Welded Pipes Manufacturer, SS Welded Pipes, Stainless Steel Polished Welded Pipes, Stainless Steel Welded Pipes Stockist, ASME SA312 Stainless Steel Welded Piping, Jindal Stainless Steel Welded Pipes, SS Welded Pipe, SS Welded Pipe Supplier, Stainless Steel Welded Pipes Stockholder, Stainless Steel Welded Pipes Price, Stainless Steel Spiral Welded Pipe, Stainless Steel Welded Pipes Exporter in Mumbai, India.
The resistance of the SS Welded Pipe is determined by the thickness of the chromium oxide layer. The surface of the stainless-steel welded pipe is extremely smooth. It is difficult to scale and has anti-fouling properties. It not only promotes heat dissipation but also does not require frequent cleaning, saving time and effort; uniform wall thickness; length can be adjusted arbitrarily with high precision; corrosion resistance and extended service life Stainless steel pipe also has a better strength and hardness, as well as a faster work hardening rate.
Large Diameter Stainless Steel Welded Pipe is utilized in hospitals and the hospitality industry, where cleanliness is paramount. Our Welded pipes are employed in both business and residential settings.
Grade
If properly maintained, they can endure up to 50 years. The SS 304 welded pipe's long life can also be ascribed to its great resistance to harsh temperatures. It is claimed to be more hygienic than other materials, hence it is also utilized in the food processing business. Large Diameter Stainless Steel Welded Pipe is utilized in hospitals and the hospitality industry, where cleanliness is paramount.
This type of welded pipe is said to be non-degradable and can be completely recycled. Our Stainless Steel Welded Pipes are being found in a widespread range of applications such as in Chemical, Petrochemical, Oil & Gas, Refinery, Fertilizer, Automotive, Bearing, Power, Structural & Mechanical applications.
Stainless Steel Welded Pipes Specification
Specifications
ASTM A312 / ASME SA312
Dimensional
ANSI/ASME B36.19M, ANSI/ASME B36.10M
Pipe Size
1 / 2″ NB – 24″ NB
Outside Diameter
6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Pipe Schedule Thickness Range
SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Pipes End Types
Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)
Tpes Of Stainless Steel Welded Pipes

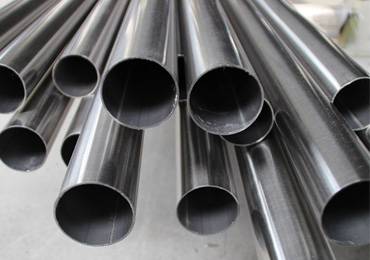

Welded Round Pipe
- ASTM A312 Stainless Steel Welded Round Pipes
- ASME SA312 Stainless Steel Welded Round Pipe
- SS Welded Round Pipes
- Stainless Steel Welded Round Pipe
- SS Welded Round Pipes Manufacturer
- Stainless Steel Welded Round Pipe
- SS Round Welded Pipes Exporter
- Stainless Steel Round Welded Pipes Stockist
- Stainless Steel Welded Round Pipes Supplier
- SS Welded Round Pipes in Mumbai, India
- SS Welded Round Pipe Price
- Stainless Steel Welded Round Pipes in India

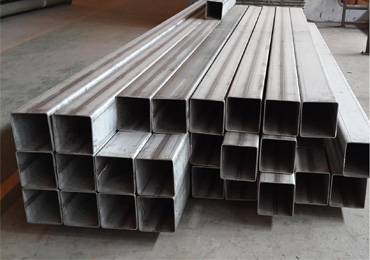

Welded Square Pipes
- ASTM A312 Stainless Steel Welded Square Pipes
- ASME SA312 Stainless Steel Welded Square Pipes
- Stainless Steel Welded Square Pipes
- SS Welded Square Pipe
- Stainless Steel Square Welded Pipes
- SS Welded Square Pipes Manufacturer
- Stainless Steel Welded Square Pipes Exporter
- Stainless Steel Welded Square Pipes Stockist
- SS Welded Square Pipe Supplier
- Stainless Steel Square Welded Pipes in Mumbai, India
- SS Welded Square Pipe Price
- Stainless Steel Welded Square Pipes in India

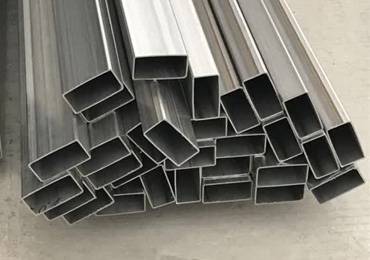

Welded Rectangular Pipe
- ASTM A312 Stainless Steel Welded Rectangular Pipe
- ASME SA312 Stainless Steel Welded Rectangular Pipes
- Stainless Steel Welded Rectangular Pipes
- SS Welded Rectangular Pipes
- Stainless Steel Welded Rectangular Pipes Manufacturer
- SS Rectangular Welded Pipe Stockholder
- Stainless Steel Welded Rectangular Pipes Exporter
- SS Rectangular Welded Pipes Stockist
- Stainless Steel Welded Rectangular Pipes Supplier
- SS Welded Rectangular Pipes in Mumbai, India

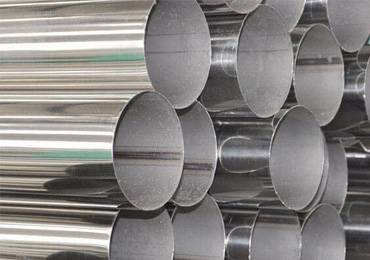

Polished Welded Pipe
- ASTM A312 Stainless Steel Polished Welded Pipes
- ASME SA312 Stainless Steel Polished Welded Pipes
- Stainless Steel Polished Welded Pipe
- SS Welded Polished Pipes
- SS Polished Welded Pipes
- Stainless Steel Polished Welded Pipe Manufacturer
- SS Polished Welded Pipes
- Stainless Steel Polished Welded Pipe Exporter
- SS Polished Welded Pipes Stockist
- Stainless Steel Welded Polished Pipes Supplier
- SS Polished Welded Pipes in Mumbai, India

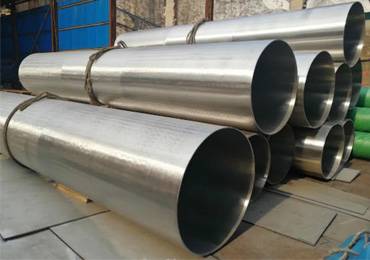

Welded Large Diameter Pipe
- ASTM A312 Stainless Steel Welded Large Diameter Pipes
- ASME SA312 SS Welded Large Diameter Pipes
- Stainless Steel Welded Large Diameter Pipe Stockholder
- SS Welded Large Diameter Pipes
- Stainless Steel Welded Large Diameter Pipes
- SS Welded Large Diameter Pipes Manufacturer
- SS Welded Large Diameter Pipe
- Stainless Steel Welded Large Diameter Pipes Exporter
- Stainless Steel Welded Large Diameter Pipes Stockist
- Stainless Steel Welded Large Diameter Pipe Supplier
- SS Welded Large Diameter Pipes in Mumbai, India

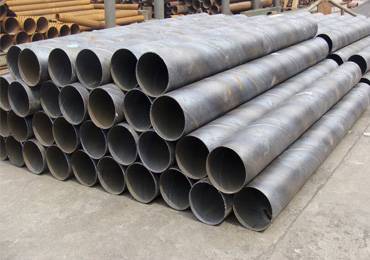

Spiral Welded Pipe
- ASTM A312 Stainless Steel Spiral Welded Pipes
- ASME SA312 Stainless Steel Spiral Welded Pipe
- SS Spiral Welded Pipes
- Stainless Steel Spiral Welded Pipes Stockists
- SS Spiral Welded Pipe Manufacturer
- Stainless Steel Spiral Welded Pipes Stockholder
- Stainless Steel Spiral Welded Pipe Exporter
- SS Spiral Welded Pipes Stockist
- SS Spiral Welded Pipes Supplier
- Stainless Steel Spiral Welded Pipes in Mumbai, India
Stainless Steel Welded Pipe Wall Thickness Tolerance Chart
| Nominal Pipe Size (NPS) | ASTM A312 Pipe |
| IPS 1/4 to 1-1/2 | +.015/-.031 |
| IPS 2 to 4 | +.031/-.031 |
| IPS 5 to 8 | +.093/-.031 |
SS Welded Pipe Schedule Chart
| NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
|
1/8″
|
|
|
|
|
|
|
1/4″
|
|
|
|
|
|
|
3/8″
|
|
|
|
|
|
|
1/2″
|
|
|
|
|
|
|
3/4″
|
|
|
|
|
|
|
1″
|
|
|
|
|
|
|
1 1/4″
|
|
|
|
|
|
|
1 1/2″
|
|
|
|
|
|
|
2″
|
|
|
|
|
|
|
2 1/2″
|
|
|
|
|
|
|
3″
|
|
|
|
|
|
|
4″
|
|
|
|
|
|
|
5″
|
|
|
|
|
|
|
6″
|
|
|
|
|
Stainless Steel Welded Pipe Pressure Rating Chart
| Pressure Rating (psig) | ||||||||||
| Pipe Size (inches) |
Pipe Schedule | Temperature (oF) | ||||||||
| 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||
| 1" | 40 | 3168 | 2629 | 2362 | 2171 | 2019 | 1924 | 1867 | 1824 | 1810 |
| 80 | 4213 | 3634 | 3265 | 3002 | 2791 | 2659 | 2580 | 2528 | 2501 | |
| 160 | 6140 | 5296 | 4759 | 4375 | 4068 | 3876 | 3761 | 3684 | 3646 | |
| 1 1/2" | 40 | 2257 | 1947 | 1750 | 1608 | 1496 | 1425 | 1383 | 1354 | 1340 |
| 80 | 3182 | 2744 | 2466 | 2267 | 2108 | 2009 | 1949 | 1909 | 1889 | |
| 160 | 4619 | 3984 | 3580 | 3291 | 3060 | 2916 | 2829 | 2772 | 2743 | |
| 2" | 40 | 1902 | 1640 | 1474 | 1355 | 1260 | 1201 | 1165 | 1141 | 1129 |
| 80 | 2747 | 2369 | 2129 | 1957 | 1820 | 1734 | 1682 | 1648 | 1631 | |
| 160 | 4499 | 3880 | 3486 | 3205 | 2980 | 2840 | 2755 | 2699 | 2671 | |
| 3" | 40 | 1806 | 1558 | 1400 | 1287 | 1196 | 1140 | 1106 | 1084 | 1072 |
| 80 | 2553 | 2202 | 1979 | 1819 | 1691 | 1612 | 1564 | 1532 | 1516 | |
| 160 | 3840 | 3312 | 2976 | 2736 | 2544 | 2424 | 2352 | 2316 | 2280 | |
| 4" | 40 | 1531 | 1321 | 1187 | 1091 | 1014 | 967 | 938 | 919 | 909 |
| 80 | 2213 | 1909 | 1715 | 1577 | 1466 | 1397 | 1355 | 1328 | 1314 | |
| 160 | 3601 | 3106 | 2791 | 2566 | 2386 | 2273 | 2206 | 2161 | 2138 | |
| 5" | 40 | 1342 | 1158 | 1040 | 956 | 889 | 847 | 822 | 805 | 797 |
| 80 | 1981 | 1709 | 1535 | 1411 | 1312 | 1250 | 1213 | 1189 | 1176 | |
| 160 | 3414 | 2945 | 2646 | 2433 | 2262 | 2155 | 2091 | 2049 | 2027 | |
| 6" | 40 | 1219 | 1052 | 945 | 869 | 808 | 770 | 747 | 732 | 724 |
| 80 | 1913 | 1650 | 1483 | 1363 | 1267 | 1208 | 1172 | 1148 | 1136 | |
| 160 | 3289 | 2836 | 2549 | 2343 | 2179 | 2076 | 2014 | 1973 | 1953 | |
| 8" | 40 | 1073 | 926 | 832 | 765 | 711 | 678 | 657 | 644 | 637 |
| 80 | 1692 | 1459 | 1311 | 1205 | 1121 | 1068 | 1036 | 1015 | 1005 | |
| 160 | 3175 | 2738 | 2460 | 2262 | 2103 | 2004 | 1944 | 1905 | 1885 | |
| 10" | 40 | 974 | 840 | 755 | 694 | 645 | 615 | 596 | 584 | 578 |
| 80 | 1609 | 1388 | 1247 | 1147 | 1066 | 1016 | 986 | 966 | 956 | |
| 160 | 3147 | 2714 | 2439 | 2242 | 2085 | 1986 | 1927 | 1880 | 1868 | |
