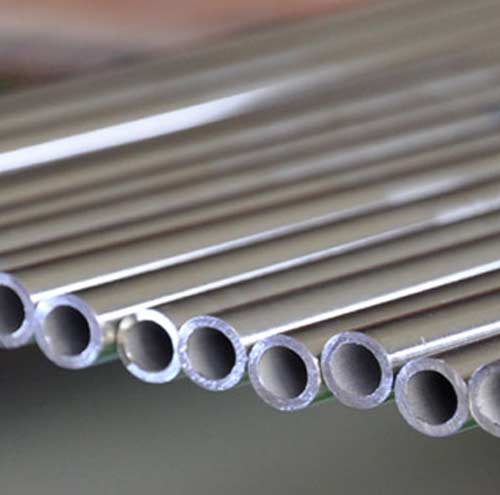

Stainless Steel 904L Tube Manufacturer

Table Of Content

Prism TuboTech Pvt. Ltd. is an esteemed supplier and manufacturer of Stainless Steel 904L Tubes. Stainless Steel 904L tubes are resistant to warm seawater as well as chloride attack. The presence of a high nickel concentration in the composition of Stainless Steel 904L Tube accounts for its strong resistance to stress-induced corrosion cracking.

UNS N08904 Tube, Austenitic Stainless Steel 904L Tubes, Stainless Steel N08904 Tubes Exporter, 904L Stainless Steel Tube, Stainless Steel 904L Tubing, SS 321 Tube Manufacturer, SS 321 Tube, SS 321 Tube Supplier, SS 1.4539 Tubes, SS 904L Tube Supplier, SS 904L Tube, SS 904L Tube Manufacturer, SS 904L Tubes, Stainless Steel 904L Tubes Manufacturer, Stainless Steel 904L Tubes, Stainless Steel 904L Tubes Supplier, ASTM A213 Stainless Steel 904L Tubes Supplier in India.

Furthermore, the addition of copper to the material standard for Stainless Steel 904L Tube improves its resistance to sulphuric acid and other reducing agents in both harsh and gentle environmental conditions. Stainless Steel 904L Tube does not have any magnetic properties. it has outstanding toughness, formability, and weldability.

ASME SA213 Stainless Steel 904L Tubing, Stainless Steel 1.4539 Tubes Stockist, SS TP904L Tubes, Jindal Stainless Steel 904L Tubes, Stainless Steel 1.4539 Tubes Manufacturer, Stainless Steel TP904L Tubes Stockholder, SS 904L Round Tube, 904L Stainless Steel Polished Tubes, 904L Stainless Steel Tubes Price, Stainless Steel 904L Tubes Exporter in Mumbai, India.

The material standard of Stainless Steel 904L Tube provides excellent oxidation resistance. When utilised in applications where temperatures can reach beyond 400°C, however, the structural stability of the Stainless Steel 904L Tube is compromised. The equivalent of grade Stainless Steel 904L Tube can be solution heat-treated at 1090 to 1175°C. Stainless Steel 904L Tubes can be hardened by thermal treatment.

The weldability of the Stainless Steel 904L Tube is excellent, and welding operations can be carried out using any traditional method. Because the material is readily weldable, manufacturers of Stainless Steel 904L Tube do not apply heat treatments such as pre-heat and post-weld.

In general, suppliers of Stainless Steel 904L Tube see this material as exceptionally pure steel with minimal sulphur content. Manufacturers of Stainless Steel 904L Tube can mill this material using any standard procedures.

Grade
904L
Stainless Steel 904L Tubes

Even in frigid temperatures, these grades may be bent to a small radius with ease. Although annealing is not necessary for most circumstances, annealing is required when fabricating Stainless Steel 904L Tube under severe stress corrosion cracking conditions.

All products go through our quality check process which includes Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, ultrasonic flaw detector, Magnetic particle detector, etc.

Stainless Steel 904L Tubes Specification

Specifications

ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554

Tube Size

1 / 2" NB - 24" NB

Manufacturing Shapes

Hydraulic, Round, Rectangle, Square, Hex, Honed

Outside Diameter

6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock

Tube Schedule Thickness Range

SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS

Tubes End Types

Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)

ASME SA 213 Equivalent Grades of Stainless Steel 904L Tubes

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5

Types Of Stainless Steel 904L Tubes

SS Round Tube

Round Tube

  • SS 1.4539 Round Tubes Exporter
  • SS 1.4539 Round Tube
  • Stainless Steel 904L Round Tubes
  • UNS N08904 Round Tubes Supplier
  • SS 1.4539 Round Tubes Manufacturer
  • 904L SS Round Tube Price
  • SS 904L Round Tube Exporters
  • ASME SA213 Stainless Steel 904L Round Tube
  • ASTM A269 Stainless Steel 904L Round Tubes
  • UNS N08904 Round Tubes Stockist
  • UNS N08904 Round Tubes in Mumbai, India
  • 904L Stainless Steel Round Tubes in India
  • SS 904L Round Tubes
SS Square Tubes

Square Tubes

  • SS 1.4539 Square Tubes Manufacturer
  • SS 1.4539 Square Tubes Exporter
  • UNS N08904 Square Tube Supplier
  • ASME SA213 Stainless Steel 904L Square Tubes
  • SS 904L Square Tubes
  • 904L Stainless Steel Square Tubes in India
  • Stainless Steel 904L Square Tube
  • 904L SS Square Tube Price
  • UNS N08904 Square Tubes Stockist
  • ASTM A213 Stainless Steel 904L Square Tubes
  • SS 1.4539 Square Tubes
  • UNS N08904 Square Tubes in Mumbai, India
SS Rectangular Tube

Rectangular Tube

  • SS 1.4539 Rectangular Tubes Manufacturer
  • SS 1.4539 Rectangular Tube
  • UNS N08904 Rectangular Tubes in Mumbai, India
  • ASTM A213 Stainless Steel 904L Rectangular Tube
  • SS 904L Rectangular Tubes
  • Stainless Steel 904L Rectangular Tubes
  • UNS N08904 Rectangular Tubes Stockist
  • ASME SA269 Stainless Steel 904L Rectangular Tubes
  • SS 1.4539 Rectangular Tubes Exporter
  • UNS N08904 Rectangular Tubes Supplier
SS Polished Tube

Polished Tube

  • UNS N08904 Polished Tubes Supplier
  • SS 1.4539 Polished Tube Manufacturer
  • UNS N08904 Polished Tubes Stockist
  • ASME SA213 Stainless Steel 904L Polished Tubes
  • Stainless Steel 904L Polished Tube
  • SS 904L Polished Tubes
  • SS 1.4539 Polished Tube Exporter
  • SS 1.4539 Polished Tubes
  • UNS N08904 Polished Tubes in Mumbai, India
  • Stainless Steel 904L Polished Tubes Stockist
  • ASTM A213 Stainless Steel 904L Polished Tubes
SS U Shaped Tube

U Shaped Tube

  • Stainless Steel 904L U Shaped Tubes
  • SS 904L U Shaped Tubes Stockholder
  • SS 1.4539 U Shaped Tubes Exporter
  • SS 1.4539 U Shaped Tubes Manufacturer
  • SS 1.4539 U Shaped Tube
  • UNS N08904 U Shaped Tubes in Mumbai, India
  • ASTM A269 Stainless Steel 904L U Shaped Tubes
  • Stainless Steel 904L U Shaped Tube
  • UNS N08904 U Shaped Tubes Stockist
  • ASME SA213 Stainless Steel 904L U Shaped Tubes
  • UNS N08904 U Shaped Tube Supplier
SS Thik Wall Tube

Thik Wall Tube

  • UNS N08904 Thik Wall Tubes in Mumbai, India
  • SS 904L Thik Wall Tubes
  • UNS N08904 Thik Wall Tubes Stockist
  • ASTM A213 Stainless Steel 904L Thik Wall Tubes
  • SS 1.4539 Thik Wall Tube Exporter
  • SS 1.4539 Thik Wall Tubes
  • ASME SA213 Stainless Steel 904L Thik Wall Tube
  • UNS N08904 Thik Wall Tubes Supplier
  • SS 1.4539 Thik Wall Tube Manufacturer
  • Stainless Steel 904L Thik Wall Tubes

904L Stainless Steel Tube Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 904L 0.020 max 2.00 max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 max 23.00 – 28.00 1.00 – 2.00

904L Stainless Steel Tubes Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.95 g/cm3 1350 °C (2460 °F) Psi – 71000 , MPa – 490 Psi – 32000 , MPa – 220 35 %

Stainless Steel 904L Tube Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
310 8000 193 17.2 17.8 18.4 16.2 21.5 500 720

904L Stainless Steel Tubes Size Chart

ASTM A213 SS 904L Tubes WT
mm		 in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352) 1 160 4.30
42.16 2.77 1¼ 10S 2.73
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 6.352) 1¼ 160 5.69
48.26 2.77 1½ 10S 3.16
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742) 2 160 11.29
73.03 3.05 2½ 10S 5.35
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132) 3 160 21.67
101.60 3.05 3½ 10S 7.53
101.60 5.74 3½ 40S 13.78
101.60 8.08 3½ 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492) 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882) 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262) 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012) 8 160 112.97

904L Stainless Steel Tube Schedule Chart

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″

1/4″

3/8″

1/2″
3/4″
1″
1 1/4″
1 1/2″
2″
2 1/2″
3″
4″
5″

6″


904L Stainless Steel Tube Stock

Product Description Outside Diamter, OD (in mm) Wall Thickness, WT (in mm)
904L Stainless Steel Round Tube 6mm – 630mm 0.5mm-30mm
904L Stainless Steel Square Tube 12.7mm* 12.7mm to 300mm* 300mm 0.5mm-30mm
904L Stainless Steel Rectangular Tube 10*20mm to 100*200mm 0.5mm-30mm
904L Stainless Steel Colour Coated Tube 6mm to 630mm 0.5mm-30mm
904L Stainless Steel Electropolished Tube 12.7mm to 250mm 0.5mm-30mm
904L Stainless Steel Triangle Tube 16mm to 85mm 0.5mm-3.0mm
904L Stainless Steel Hexagonal Tube 13mm to 85mm 0.5mm-2.0mm
904L Stainless Steel U Shaped Tube 20mm to 200mm 0.5mm-2.0mm
904L Thin-Wall Stainless Steel Tube 22mm*0.7mm to 108mm*2.0mm 0.5mm-2.0mm
904L Inner/Outside Polished Stainless Steel Tube, tube 12.5mm to 203.2mm 1.0mm – 5mm
904L Stainless Steel Capillary Tube 0.28mm to 10mm 0.08mm – 1.2mm
904L Stainless Steel Seamless Tube 6mm to 430mm 0.8mm – 30mm

Other Types Of Stainless Steel 904L Tubes

  • 904L SS Schedule 40/40S Tube Supplier in India
  • Stainless Steel 904L Electro polished Tubes Supplier
  • 904L Stainless Steel Tube Weight Chart
  • ASTM A249 SS 904L Jindal Tubes
  • SS 904L Cut To Size Tube Exporter in India
  • SS 904L Cold Drawn Tubes
  • Stainless Steel 904L High Pressure Tube
  • 904L Stainless Steel Tube Pressure Rating Chart
  • Weight of 904L Stainless Steel Tube
  • Perforated Stainless Steel 904L Tubes
  • SS 904L Tube Size Chart in mm
  • SS 904L Tube Price Per Meter
  • Schedule 10 904L Stainless Steel Tube Pressure Rating
  • SS 1.4539 Hexagonal Piping
  • Jindal Stainless Steel 904L Tube Price List
  • Stainless Steel 904L Slot Round Tube Manufacturer
  • ASME SA269 SS 904L Fabricated Tubes
  • 904L Unpolished Stainless Steel Factory Tube
  • 904L Stainless Steel Triangle Tubes
  • ASME SA213 SS 904L Fabricated Tubes
  • Stainless Steel 904L Tube Quotes
  • Thin Walled SS 904L Tube Stockists in India

Application Industries for High Quality SS 904L Tubes

Application Industries
  • SS 904L Tubes Pulp & Paper Indusry
  • SS 904L Tubes Food Processing Industry
  • SS 904L Tubes Shipbuilding Industries
  • SS 904L Tubes Piping Systems
  • SS 904L Tubes Hydraulic Applications
  • SS 904L Tubes Chemical Industries
  • SS 904L Tubes Refining Industry
  • SS 904L Tubes In Offshore Tubelines & Tube Works
  • SS 904L Tubes Energy Industry
  • SS 904L Tubes in Oil & Gas Industrires
  • SS 904L Tubes Petrochemical Industry
  • SS 904L Tubes Construction Industries
  • SS 904L Tubes Power Plant Industry
