Stainless Steel 321 Pipe Manufacturer

Table Of Content

Prism TuboTech Pvt Ltd is one of the prime distributors, exporters, and manufacturers of Stainless Steel 321 Pipe. Our grade 321 steel products are highly durable and reliable due to their versatile chemical combination and sustainable design. These pipes are accurately structured to obtain high-level resistance from several organic and inorganic chemicals. Stainless 321 is chromium-nickel steel that was developed with enhanced intergranular-corrosion resistance.

Stainless Steel 321 Pipe Manufacturer, SS 321 Pipe Manufacturer, SS 321 Pipe, SS 321 Pipe Supplier, Austenitic Stainless Steel 321 Pipes, UNS S32109 Pipes, Stainless Steel 321 Pipes, Stainless Steel 1.4541 Pipes, UNS S32109 Pipe, Stainless Steel 321H Pipes Supplier, Stainless Steel S32100 Pipes Exporter, SS 321H Pipes, 321 Stainless Steel Pipe, Stainless Steel 321 Piping, Stainless Steel 321H Pipes, 321 Steel Pipe, ASTM A312 Stainless Steel 321 Pipes Supplier in India.

Stainless 321 is resilient to atmospheric corrosion, sterilizing solutions, crevice corrosion, and, pitting corrosion. These 321H Schedule 40 Pipes are very ductile and have excellent low-temperature toughness. These pipes can be easily welded through most standard welding processes.

Stainless Steel 1.4878 Pipes Manufacturer, 321 Stainless Steel Pipes Price, ASME SA312 Stainless Steel 321H Piping, Stainless Steel TP321H Pipes Stockholder, Jindal Stainless Steel 321H Pipes, 321H Stainless Steel Polished Pipes, Stainless Steel 1.4541 Pipes Stockist, Stainless Steel TP321H Pipes, SS 321 Round Pipe, SS 1.4878 Pipes, Stainless Steel 321 Pipes Exporter in Mumbai, India.

321H and 321 Pipes possess some exceptional features to offer such as Flawless finish, Durable and reliability, resilience against corrosion, High tensile strength, and more. As the alloy is ductile, the 321 grade can be easily formed into pipes. Moreover, the SA312 Tp321, like most austenitic stainless steel pipes can be easily welded by the conventionally used welding and fabrication techniques.

Austenitic stainless steel pipes are stabilized against carbide precipitation and designed to work within the carbide precipitation temperature range 427 to 816°C (800 to 1500 Degree F). Grade 321 contains a maximum of 0.3 percent carbon content in their overall chemical composition meanwhile 321H SS Pipe is the higher carbon version of the alloy containing around 0.04 – 0.10 percent of carbon.

Grade
321

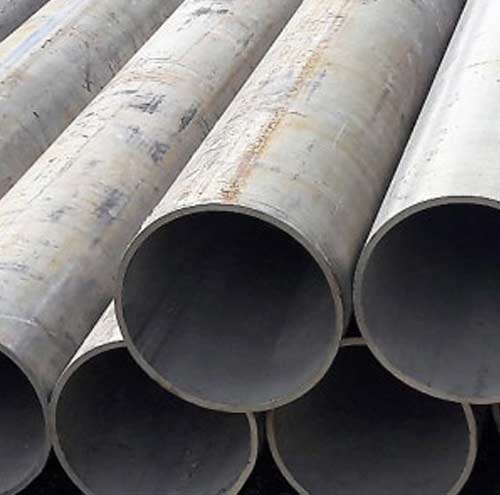

Stainless Steel 321 / 321H Pipes

It was developed to obtain efficient creep resistance and for higher strength at temperatures above 1000oF (537°C). Some of the major applications of these pipes are boilers, jet engines, exhausts, food processing industry, paper, and pulp industry, and Pharmaceutical Equipment, Prism TuboTech Pvt Ltd offers the finest 321 SS pipe products with low maintenance requirements and high durability to fulfill the business needs of our clients.

Stainless Steel 317 Pipes Specification

Specifications

ASTM A312, A358 / ASME SA312, SA358

Dimensional

ANSI/ASME B36.19M, ANSI/ASME B36.10M

Pipe Size

1 / 2″ NB – 24″ NB

Outside Diameter

6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock

Pipe Schedule Thickness Range

SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS

Pipes End Types

Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)

ASME SA 312 Equivalent Grades of Stainless Steel 321H Pipes

STANDARD WERKSTOFF NR. UNS JIS EN
SS 321 1.4541 S32100 SUS 321 X6CrNiTi18-10
SS 321H 1.4878 S32109 SUS 321H X12CrNiTi18-9

Tpes Of Stainless Steel 321H Pipes

SS Round Pipe

Round Pipe

  • Stainless Steel 321 Round Pipes
  • UNS S32109 Round Pipes Supplier
  • 321H Stainless Steel Round Pipes in India
  • SS 1.4878 Round Pipes Exporter
  • SS 1.4541 Round Pipe
  • SS 321H Round Pipe
  • ASME SA312 Stainless Steel 321H Round Pipe
  • SS 1.4541 Round Pipes Manufacturer
  • UNS S32100 Round Pipes in Mumbai, India
  • 321 SS Round Pipe Price
  • UNS S32109 Round Pipes Stockist
  • Stainless Steel 321H Round Pipes
  • ASTM A312 Stainless Steel 321 Round Pipes
SS Square Pipes

Square Pipes

  • Stainless Steel 321 Square Pipe
  • SS 1.4541 Square Pipes
  • UNS S32109 Square Pipe Supplier
  • 321H Stainless Steel Square Pipes in India
  • SS 1.4541 Square Pipes Manufacturer
  • UNS S32100 Square Pipes Stockist
  • UNS S32109 Square Pipes in Mumbai, India
  • ASTM A312 Stainless Steel 321H Square Pipes
  • SS 1.4878 Square Pipes Exporter
  • 321 SS Square Pipe Price
  • Stainless Steel 321 Square Pipes
  • SS 321H Square Pipes
  • ASME SA312 Stainless Steel 321 Square Pipes
SS Rectangular Pipe

Rectangular Pipe

  • UNS S32109 Rectangular Pipes Supplier
  • ASTM A312 Stainless Steel 321 Rectangular Pipe
  • UNS S32100 Rectangular Pipes in Mumbai, India
  • UNS S32100 Rectangular Pipes Stockist
  • SS 1.4878 Rectangular Pipes Exporter
  • Stainless Steel 321 Rectangular Pipes
  • SS 1.4541 Rectangular Pipes Manufacturer
  • ASME SA312 Stainless Steel 321 Rectangular Pipes
  • Stainless Steel 321H Rectangular Pipe
  • SS 1.4541 Rectangular Pipe
  • SS 321 Rectangular Pipes
SS Polished Pipe

Polished Pipe

  • Stainless Steel 321 Polished Pipe
  • Stainless Steel 321 Polished Pipes
  • ASTM A312 Stainless Steel 321 Polished Pipes
  • SS 1.4541 Polished Pipe Manufacturer
  • UNS S32100 Polished Pipes Stockist
  • SS 1.4878 Polished Pipe Exporter
  • ASME SA312 Stainless Steel 321H Polished Pipes
  • Stainless Steel 321H Polished Pipes
  • SS 1.4541 Polished Pipes
  • UNS S32109 Polished Pipes Supplier
  • UNS S32109 Polished Pipes in Mumbai, India
SS Hollow Pipe

Hollow Pipe

  • ASTM A312 Stainless Steel 321 Hollow Pipes
  • Stainless Steel 321H Hollow Pipes
  • Stainless Steel 321 Hollow Pipe
  • SS 1.4878 Hollow Pipes Exporter
  • SS 1.4541 Hollow Pipes Manufacturer
  • UNS S32100 Hollow Pipes in Mumbai, India
  • UNS S32109 Hollow Pipe Supplier
  • SS 321H Hollow Pipes
  • SS 1.4878 Hollow Pipe
  • UNS S32100 Hollow Pipes Stockist
  • ASME SA312 Stainless Steel 321H Hollow Pipes
SS Thin Wall Pipe

Thin Wall Pipe

  • UNS S32109 Thin Wall Pipes Supplier
  • SS 1.4541 Thin Wall Pipes
  • SS 1.4541 Thin Wall Pipe Manufacturer
  • Stainless Steel 321 Thin Wall Pipes
  • SS 321 Thin Wall Pipes
  • UNS S32100 Thin Wall Pipes Stockist
  • UNS S32109 Thin Wall Pipes in Mumbai, India
  • ASME SA312 Stainless Steel 321H Thin Wall Pipe
  • ASTM A312 Stainless Steel 321 Thin Wall Pipes
  • Stainless Steel 321H Thin Wall Pipes
  • SS 1.4878 Thin Wall Pipe Exporter

321 Stainless Steel Pipe Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 321 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 - 19.00 0.10 max 9.00 - 12.00 5(C+N) – 0.70 max
SS 321H 0.04 – 0.10 2.0 max 1.0 max 0.045 max 0.030 max 17.00 - 19.00 0.10 max 9.00 – 12.00 4(C+N) – 0.70 max

321 Stainless Steel Pipes Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1457 °C (2650 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Stainless Steel 321H Pipe Wall Thickness Tolerance Chart

Nominal Pipe Size (NPS) ASTM A312 321 Pipe
IPS 1/4 to 1-1/2 +.015/-.031
IPS 2 to 4 +.031/-.031
IPS 5 to 8 +.093/-.031

SS 321 Pipe Schedule Chart

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″

1/4″

3/8″

1/2″
3/4″
1″
1 1/4″
1 1/2″
2″
2 1/2″
3″
4″
5″

6″


321H Stainless Steel Pipe Pressure Rating Chart

Pressure Rating (psig)
Pipe Size
(inches)		 Pipe Schedule Temperature (oF)
100 200 300 400 500 600 650 700 750
1" 40 3168 2629 2362 2171 2019 1924 1867 1824 1810
80 4213 3634 3265 3002 2791 2659 2580 2528 2501
160 6140 5296 4759 4375 4068 3876 3761 3684 3646
1 1/2" 40 2257 1947 1750 1608 1496 1425 1383 1354 1340
80 3182 2744 2466 2267 2108 2009 1949 1909 1889
160 4619 3984 3580 3291 3060 2916 2829 2772 2743
2" 40 1902 1640 1474 1355 1260 1201 1165 1141 1129
80 2747 2369 2129 1957 1820 1734 1682 1648 1631
160 4499 3880 3486 3205 2980 2840 2755 2699 2671
3" 40 1806 1558 1400 1287 1196 1140 1106 1084 1072
80 2553 2202 1979 1819 1691 1612 1564 1532 1516
160 3840 3312 2976 2736 2544 2424 2352 2316 2280
4" 40 1531 1321 1187 1091 1014 967 938 919 909
80 2213 1909 1715 1577 1466 1397 1355 1328 1314
160 3601 3106 2791 2566 2386 2273 2206 2161 2138
5" 40 1342 1158 1040 956 889 847 822 805 797
80 1981 1709 1535 1411 1312 1250 1213 1189 1176
160 3414 2945 2646 2433 2262 2155 2091 2049 2027
6" 40 1219 1052 945 869 808 770 747 732 724
80 1913 1650 1483 1363 1267 1208 1172 1148 1136
160 3289 2836 2549 2343 2179 2076 2014 1973 1953
8" 40 1073 926 832 765 711 678 657 644 637
80 1692 1459 1311 1205 1121 1068 1036 1015 1005
160 3175 2738 2460 2262 2103 2004 1944 1905 1885
10" 40 974 840 755 694 645 615 596 584 578
80 1609 1388 1247 1147 1066 1016 986 966 956
160 3147 2714 2439 2242 2085 1986 1927 1880 1868

Other Types Of Stainless Steel 321H Pipes

  • 2 Inch Stainless Steel Pipe Price Per Foot
  • ASME SA312 SS 321 Fabricated Pipes
  • Stainless Steel 321 Oval Pipes Supplier
  • Stainless Steel Pipe Price 20 Feet
  • 321 SS Schedule 40/40S Pipe Supplier in India
  • Schedule 10 321 Stainless Steel Pipe Pressure Rating
  • SS 321 Cold Drawn Pipe Exporter in India
  • Stainless Steel 321 Pipes Price List
  • Stainless Steel 321H Exhaust Pipe Manufacturer
  • SS 321 Pipe Price Per Meter
  • SS 1.4541 Heavy Wall Piping
  • SS 321 Bright Annealed Pipes
  • SS 321 Pipe Size Chart in mm
  • Schedule 40 321 Stainless Steel Pipe Pressure Rating
  • Thick Walled SS 321 Pipe Stockists in India
  • Jindal Stainless Steel 321 Pipe Price List
  • Weight of 321 Stainless Steel Pipe
  • 321 Stainless Steel Pipe Pressure Rating Chart
  • Stainless Steel 321 Large Diameter Pipe
  • 321 Unpolished Stainless Steel Factory Pipe
  • SS 321 Jindal Pipes
  • 321 Stainless Steel Pipe Weight Chart

Application Industries for High Quality SS 321 Pipes

Application Industries
  • SS 321H Pipes Shipbuilding Industries
  • SS 321H Pipes Piping Systems
  • SS 321H Pipes Pulp & Paper Indusry
  • SS 321H Pipes Refining Industry
  • SS 321 Pipes Power Plant Industry
  • SS 321H Pipes Petrochemical Industry
  • SS 321 Pipes Hydraulic Applications
  • SS 321H Pipes Energy Industry
  • SS 321H Pipes Chemical Industries
  • SS 321 Pipes Food Processing Industry
  • SS 321H Pipes Construction Industries
  • SS 321 Pipes In Offshore Pipelines & Pipe Works
  • SS 321 Pipes in Oil & Gas Industrires
