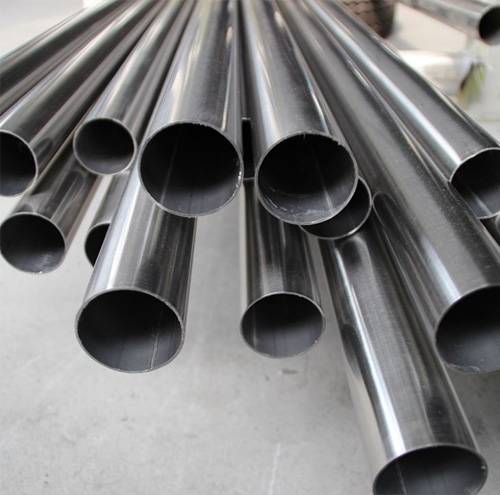

Stainless Steel 304 Welded Tube Manufacturer

Table Of Content

Stainless steel 304 Welded Tube produced by Prism TuboTech Pvt Ltd is one of the best quality welded tubes found in the market. One of the main distinctions of welded tubes is that these are stainless steel sheets that are rolled into tubes and then welded at the seam.

Stainless Steel S30400 Welded Tubes Exporter, 304 Stainless Steel Welded Tube, SS 304L Welded Tubes, UNS S30403 Welded Tubes, Stainless Steel 1.4301 Welded Tubes, SS 304H Welded Tubes, Stainless Steel 304H Welded Tubes Manufacturer, UNS S30409 Welded Tube, Stainless Steel 304L Welded Tubes, ASTM A213 Stainless Steel 304 Welded Tubes Supplier in India.

Stainless steel 304 Welded Tube's low-temperature characteristics make it possible to cold working hardening. It is resistant to corrosion in a variety of situations and media. Pitting and crevice corrosion can occur in stainless steel 304 Welded Tube when exposed to chlorides. It is resistant to heat but should not be used constantly at 425-860°C.

SS 304 Welded Tubes, 304 Stainless Steel Welded Tubes Price, Stainless Steel 1.4307 Welded Tubes, 304L Stainless Steel Polished Welded Tubes, ASME SA213 Stainless Steel 304L Welded Tubing, Stainless Steel TP304L Welded Tubes, Stainless Steel 1.4306 Welded Tubes Stockist, Jindal Stainless Steel 304L Welded Tubes, Stainless Steel 304H Welded Tubes Exporter in Mumbai, India.

This stainless steel grade is easily machinable, making tool operation easier. Tensile strength is 75 KSI (min), with a yield strength of 42 KSI.

There are minor changes in corrosiveness, heat resistance, and machinability between 304 and 304L. The maximum carbon content in 304 stainless steel is 0.08 percent, whereas it is 0.03 percent in 304L stainless steel. As a result, stainless steel 304L Welded Tube reduces/eliminates carbide precipitation during the welding process and may be heated to the temperatures listed above. If a machine is utilized constantly at 425-860°C, 304L should be used instead of 304. 70 KSI is the tensile strength (min). The maximum nitrogen percentage allowed in 304L grade is 0.10 percent. It has a 35 KSI yield strength of 0.2 percent.

Grade
304
Stainless Steel 304 Welded Tubes

Because stainless steel 304H Welded Tube has greater strength at higher temperatures, it is frequently used for structural and pressure-containing applications at temperatures exceeding 500 degrees Celsius and up to 800 degrees Celsius. It has a larger carbon content, which gives it better heat resistance, tensile yield strength, and creep strength.

We produce and deliver these in various grades and dimensions to our clients, as per their needs and requirement.

Stainless Steel 304H Welded Tubes, Stainless Steel 304 Welded Tubing, Austenitic Stainless Steel 304 Welded Tubes, Stainless Steel 304 Welded Tubes, Stainless Steel 304L Welded Tubes Supplier, SS 304 Round Welded Tube, Stainless Steel 1.4948 Welded Tubes Manufacturer, 304 Stainless Steel Welded Tubing, Stainless Steel TP304H Welded Tubes Stockholder,

Stainless Steel 304 Welded Tubes Specification

Specifications

ASTM A213, A269 / ASME SA213, SA269

Tube Size

1/2" NB - 24" NB

Manufacturing Shapes

Hydraulic, Round, Rectangle, Square, Hex

Outside Diameter

6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock

Tube Schedule Thickness Range

SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS

Tubes End Types

Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)

ASME SA 213 Equivalent Grades of Stainless Steel 304L Welded Tubes

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11
SS 304H 1.4948 S30409 SUS 304H – – – –

Types Of Stainless Steel 304H Welded Tubes

SS Welded Round Tube

Welded Round Tube

  • ASTM A269 Stainless Steel 304 Round Welded Tubes
  • ASME SA213 Stainless Steel 304L Welded Round Tube
  • UNS S30400 Round Welded Tubes Stockist
  • UNS S30403 Welded Round Tubing Supplier
  • UNS S30409 Round Welded Tubes in Mumbai, India
  • 304 SS Round Welded Tube Price
  • 304L Stainless Steel Round Welded Tubes in India
  • Stainless Steel 304 Round Welded Tubes
  • Stainless Steel 304L Welded Round Tubes
  • Stainless Steel 304H Welded Round Tube
  • SS 1.4301 Welded Round Tubing Manufacturer
  • SS 1.4307 Welded Round Tube
  • SS 1.4948 Welded Round Tubes Exporter
SS Welded Square Tubes

Welded Square Tubes

  • ASTM A213 Stainless Steel 304 Welded Square Tubes
  • ASME SA213 Stainless Steel 304H Square Welded Tubes
  • UNS S30400 Welded Square Tubes Stockist
  • UNS S30403 Square Welded Tube Supplier
  • UNS S30409 Welded Square Tubes in Mumbai, India
  • 304 SS Square Welded Tubing Price
  • 304L Stainless Steel Welded Square Tubes in India
  • Stainless Steel 304 Welded Square Tubes
  • Stainless Steel 304L Welded Square Tube
  • Stainless Steel 304H Square Welded Tubes
  • SS 1.4301 Welded Square Tubes Manufacturer
  • SS 1.4306 Square Welded Tubing
  • SS 1.4948 Welded Square Tubes Exporter
SS Welded Rectangular Tube

Welded Rectangular Tube

  • ASTM A213 Stainless Steel 304L Welded Rectangular Tubing
  • ASME SA269 Stainless Steel 304 Rectangular Welded Tubes
  • UNS S30400 Welded Rectangular Tubes Stockist
  • UNS S30403 Rectangular Welded Tubes Supplier
  • UNS S30409 Welded Rectangular Tubes in Mumbai, India
  • Stainless Steel 304 Welded Rectangular Tubes
  • Stainless Steel 304L Welded Rectangular Tube
  • Stainless Steel 304H Rectangular Welded Tubing
  • SS 1.4301 Rectangular Welded Tubes Manufacturer
  • SS 1.4307 Welded Rectangular Tube
  • SS 1.4948 Welded Rectangular Tubes Exporter
SS Welded Polished Tube

Welded Polished Tube

  • ASTM A213 Stainless Steel 304H Welded Polished Tubes
  • ASME SA213 Stainless Steel 304 Polished Welded Tubing
  • UNS S30400 Welded Polished Tubes Stockist
  • UNS S30403 Polished Welded Tubes Supplier
  • UNS S30409 Welded Polished Tubes in Mumbai, India
  • Stainless Steel 304 Welded Polished Tube
  • Stainless Steel 304L Welded Polished Tubes
  • Stainless Steel 304H Polished Welded Tubes
  • SS 1.4301 Welded Polished Tube Manufacturer
  • SS 1.4306 Polished Welded Tubes
  • SS 1.4948 Welded Polished Tubing Exporter
SS High Frequency Welded Tube

High Frequency Welded Tube

  • ASTM A269 Stainless Steel 304 High Frequency Welded Tubes
  • ASME SA213 Stainless Steel 304 High Frequency (HF) Welded Tubes
  • UNS S30400 High Frequency Welded Tubing Stockist
  • UNS S30403 High Frequency Welded Tube Supplier
  • UNS S30409 High Frequency (HF) Welded Tubes in Mumbai, India
  • Stainless Steel 304 High Frequency Welded Tube
  • Stainless Steel 304L High Frequency Welded Tubing
  • Stainless Steel 304H High Frequency (HF) Welded Tubes
  • SS 1.4301 High Frequency Welded Tubes Manufacturer
  • SS 1.4307 High Frequency Welded Tube
  • SS 1.4948 High Frequency (HF) Welded Tubes Exporter
SS Welded Thik Wall Tube

Welded Thik Wall Tube

  • ASTM A213 Stainless Steel 304L Welded Thik Wall Tubes
  • ASME SA213 Stainless Steel 304H Thik Wall Welded Tube
  • UNS S30400 Thik Wall Welded Tubing Stockist
  • UNS S30403 Welded Thik Wall Tubes Supplier
  • UNS S30409 Welded Thik Wall Tubes in Mumbai, India
  • Stainless Steel 304 Welded Thik Wall Tubes
  • Stainless Steel 304L Thik Wall Welded Tubes
  • Stainless Steel 304H Welded Thik Wall Tubes
  • SS 1.4301 Thik Wall Welded Tube Manufacturer
  • SS 1.4306 Welded Thik Wall Tubing
  • SS 1.4948 Welded Thik Wall Tube Exporter

304 Stainless Steel Welded Tube Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 – 8 – 11 –
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18 – 20 – 8 – 13 –
SS 304H 0.10 max 2.0 max 0.75 max 0.045 max 0.03 max 18 – 20 – 8 – 10.5 –

304 Stainless Steel Welded Tubes Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Stainless Steel 304H Welded Tube Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
304 8000 193 17.2 17.8 18.4 16.2 21.5 500 720

304 Stainless Steel Welded Tubes Size Chart

ASTM A213 SS 304 Tubes WT
mm		 in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352) 1 160 4.30
42.16 2.77 1¼ 10S 2.73
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 6.352) 1¼ 160 5.69
48.26 2.77 1½ 10S 3.16
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742) 2 160 11.29
73.03 3.05 2½ 10S 5.35
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132) 3 160 21.67
101.60 3.05 3½ 10S 7.53
101.60 5.74 3½ 40S 13.78
101.60 8.08 3½ 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492) 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882) 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262) 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012) 8 160 112.97

304L Stainless Steel Welded Tube Schedule Chart

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″

1/4″

3/8″

1/2″
3/4″
1″
1 1/4″
1 1/2″
2″
2 1/2″
3″
4″
5″

6″


304 Stainless Steel Welded Tube Stock

Product Description Outside Diamter, OD (in mm) Wall Thickness, WT (in mm)
304 Stainless Steel Welded Round Tube 6mm – 630mm 0.5mm-30mm
304L Stainless Steel Welded Square Tube 12.7mm* 12.7mm to 300mm* 300mm 0.5mm-30mm
304H Stainless Steel Welded Rectangular Tube 10*20mm to 100*200mm 0.5mm-30mm
304 Stainless Steel Welded Colour Coated Tube 6mm to 630mm 0.5mm-30mm
304L Stainless Steel Electropolished Welded Tube 12.7mm to 250mm 0.5mm-30mm
304H Stainless Steel Welded Triangle Tube 16mm to 85mm 0.5mm-3.0mm
304 Stainless Steel Hexagonal Welded Tube 13mm to 85mm 0.5mm-2.0mm
304L Stainless Steel U Shaped Welded Tube 20mm to 200mm 0.5mm-2.0mm
304H Thin-Wall Stainless Steel Welded Tube 22mm*0.7mm to 108mm*2.0mm 0.5mm-2.0mm
304 Inner/Outside Polished Stainless Steel Welded Tube 12.5mm to 203.2mm 1.0mm – 5mm
304L Stainless Steel Welded Capillary Tube 0.28mm to 10mm 0.08mm – 1.2mm
304H Stainless Steel Welded Tube 6mm to 430mm 0.8mm – 30mm

Other Types Of Stainless Steel 304H Welded Tubes

  • Schedule 10 304 Stainless Steel Welded Tube Pressure Rating
  • 304 Stainless Steel Welded Tubing Pressure Rating Chart
  • Perforated Stainless Steel 304 Welded Tubes
  • SS 304 Welded Tube Size Chart in mm
  • Jindal Stainless Steel 304 Welded Tube Price List
  • SS 304 Welded Tube Price Per Meter
  • 304 Stainless Steel Welded Triangle Tubes
  • ASME SA269 SS 304 Fabricated Welded Tubes
  • 304 SS Schedule 40/40S Welded Tube Supplier in India
  • 304 Stainless Steel Welded Tubing Price List
  • ASTM A213 SS 304 Jindal Welded Tubes
  • Stainless Steel 304L Streight Welded Tube Manufacturer
  • Stainless Steel 304 Electro polished Welded Tubes Supplier
  • ASME SA213 SS 304 Fabricated Welded Tubes
  • 304 Unpolished Stainless Steel Factory Welded Tube
  • SS 1.4301 Hexagonal Welded Tubing
  • SS 304 Cold Drawn Welded Tubes
  • 304L Stainless Steel Welded Tubing Supplier
  • Stainless Steel 304 Welded Tube Quotes
  • 304 Stainless Steel Welded Tube Weight Chart
  • Thin Walled SS 304 Welded Tubing Stockists in India
  • Stainless Steel 304 High Pressure Welded Tube
  • Weight of 304 Stainless Steel Welded Tube
  • SS 304 Cut To Size Welded Tube Exporter in India

Application Industries for High Quality SS 304 Welded Tubes

Application Industries
  • SS 304H Welded Tubes Energy Industry
  • SS 304 Welded Tubes Power Plant Industry
  • SS 304 Welded Tubes in Oil & Gas Industrires
  • SS 304H Welded Tubes Shipbuilding Industries
  • SS 304L Welded Tubes Petrochemical Industry
  • SS 304H Welded Tubes Refining Industry
  • SS 304 Welded Tubes Food Processing Industry
  • SS 304L Welded Tubes Chemical Industries
  • SS 304L Welded Tubes Pulp & Paper Indusry
  • SS 304 Welded Tubes Hydraulic Applications
  • SS 304L Welded Tubes in Tubing Systems
  • SS 304H Welded Tubes Construction Industries
  • SS 304 Welded Tubes In Offshore Tubelines & Tube Works
